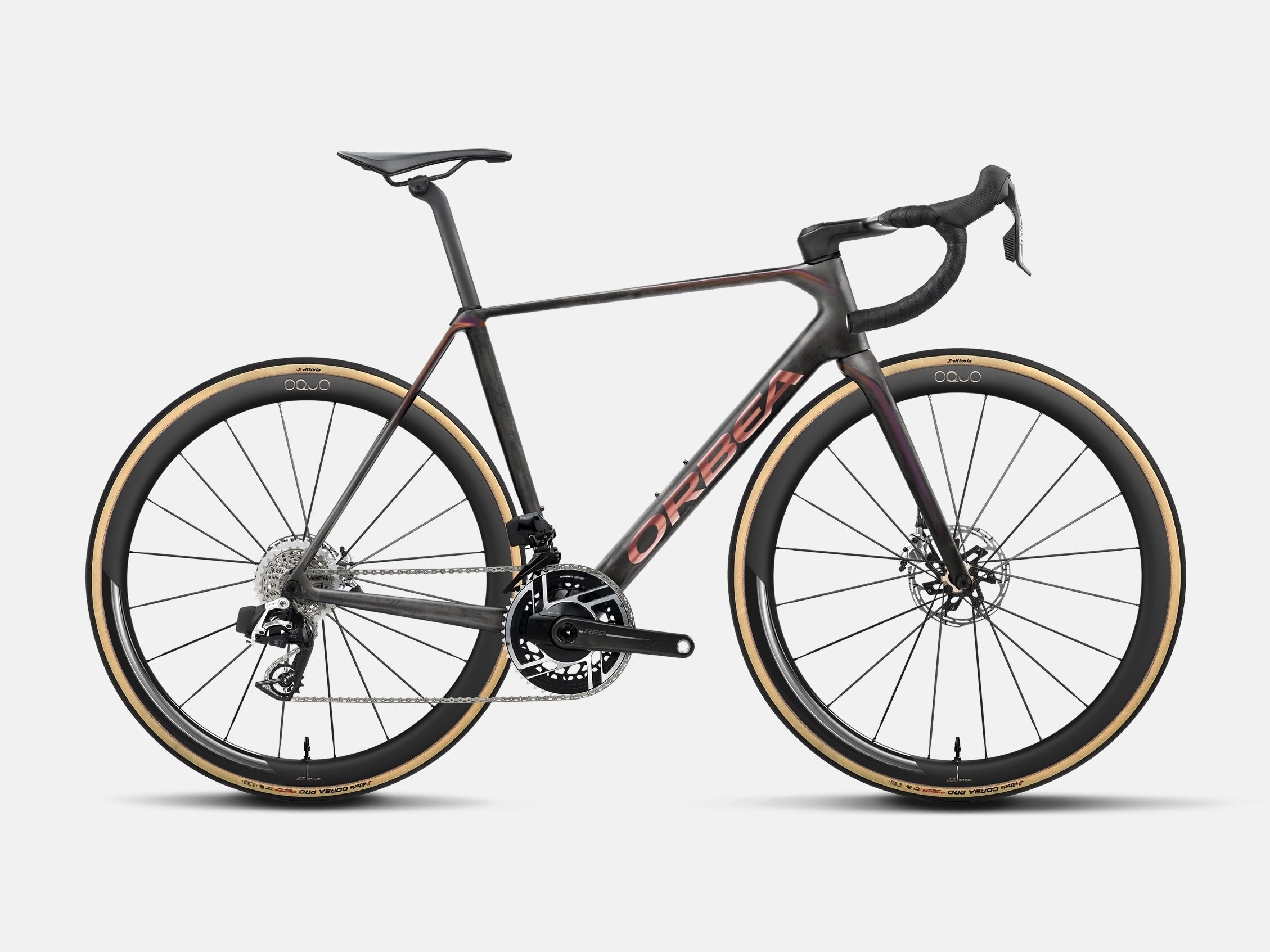

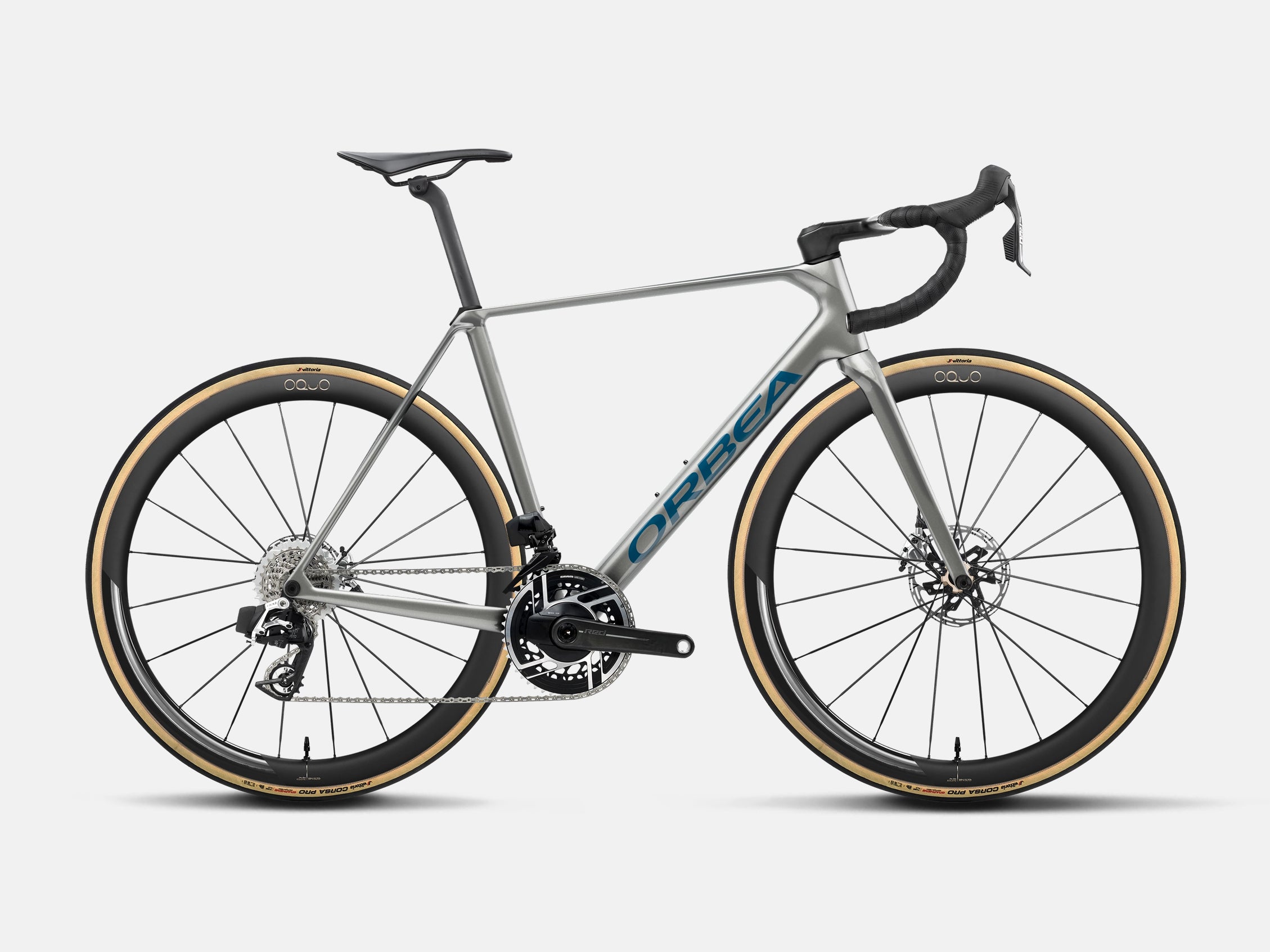

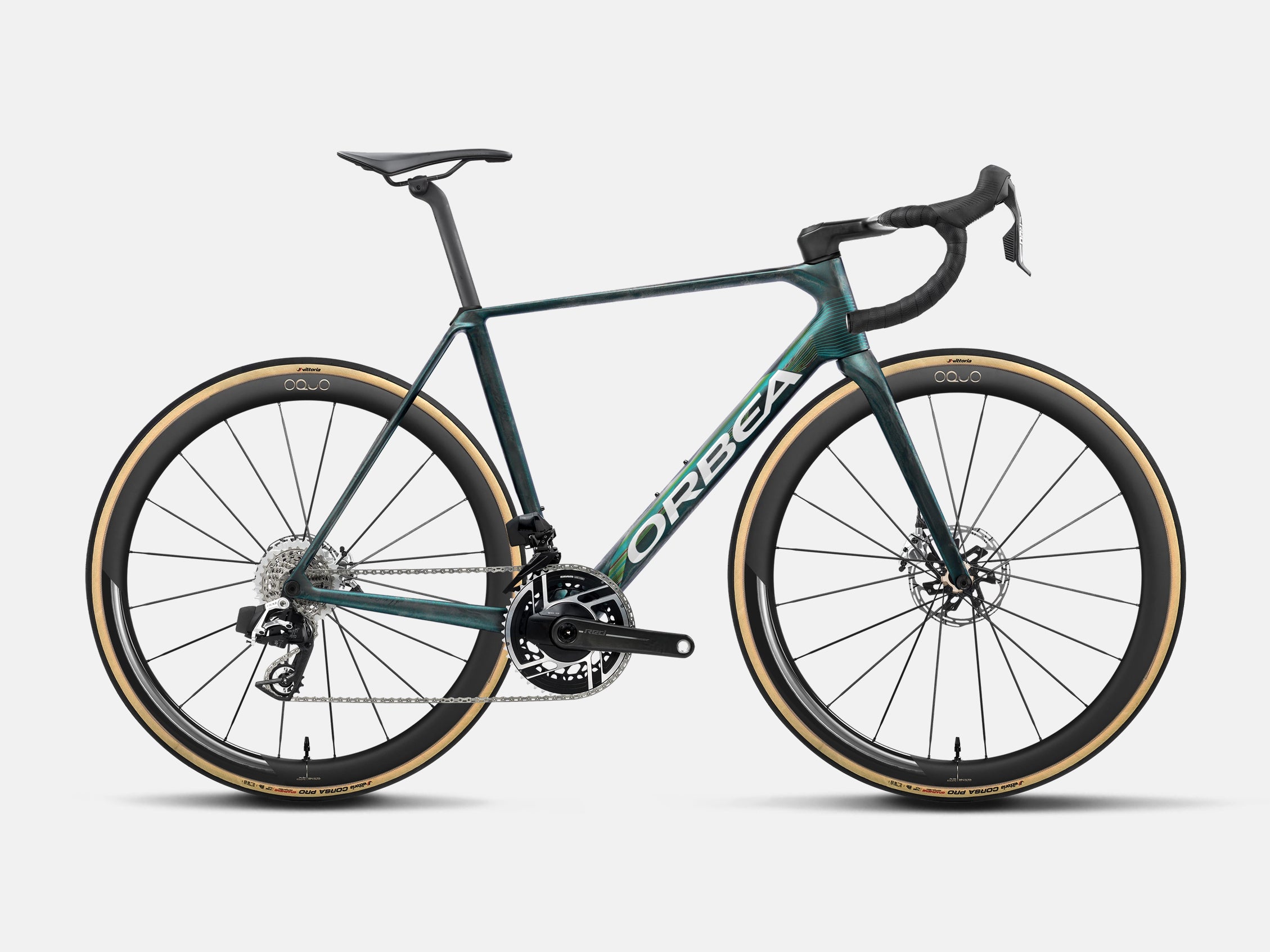

The Orbea Orca is a lightweight climbing bike, built for riders who want instant acceleration and agility the moment the road tilts uphill. Built under the "Powerspine" frame design, the Orca concentrates stiffness through the headtube, downtube and chainstays for efficient power transfer, while saving weight everywhere else. It's engineered to reward every effort on the climbs without giving up composure on the way back down.

Key Performance Features

Lightweight OMX carbon frame and fork combine low weight with a stiff Powerspine construction for instant acceleration and precise power transfer.
Shorter chainstays and a compact wheelbase sharpen responsiveness and agility, built for climbers who want to react instantly to changes in gradient.
Effective vibration damping keeps the ride smooth and controlled, even as the frame is tuned for maximum stiffness where it matters most.
Internal cable routing and an integrated seat clamp keep the aesthetic clean while adding aerodynamic gains without a weight penalty.
Compatible with electronic drivetrains and powermeter cranksets, giving riders the flexibility to build a complete performance package.

Technical Specifications

Orbea Orca carbon OMX 2024 frame, monocoque construction, HS 1.5", BB386mm, powermeter compatible, thru-axle 12x142mm rear
Full carbon Orca OMX ICR 2024 fork, 1-1/8"–1.5" tapered head tube compatible, thru-axle 12x100mm
FSA 1-1/2" integrated aluminium cup headset
SRAM Red AXS power meter DUB crankset, 35x48t
SRAM Red AXS shifters, front and rear derailleurs
SRAM XG-1290 10-30t 12-speed cassette
SRAM Red 12-speed chain
SRAM Red AXS brakes, 160mm front / 140mm rear rotors
OC SH-RA10 integrated road aero carbon bar and stem, 80mm reach, 125mm drop
Orbea Thru Axle 12x100mm (front) and 12x142mm (rear), Lite
OQUO Road Performance RP45LTD carbon spoke wheelset
Vittoria Corsa Pro Speed G2.0 TLR 700x29c tyres
OC Performance XP10-S carbon seatpost, 27.2mm, 20mm setback
Fizik Vento Antares R1 carbon rail saddle, 140mm
OC Components handlebar tape
Tyre clearance up to 32c
Electronic drivetrain and powermeter compatible

Orbea Orca Road Bike | SRAM Red AXS
